Base Cabinets

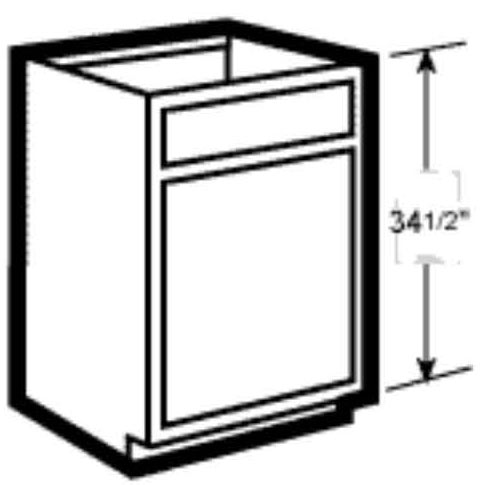

Sink Cabinet 1 Door
1 False Drawer



SC18
SC21
SC24


Cabinet back is open to allow for wall plumbing installation
Specify left (L) or right (R) hinging
Back is optional

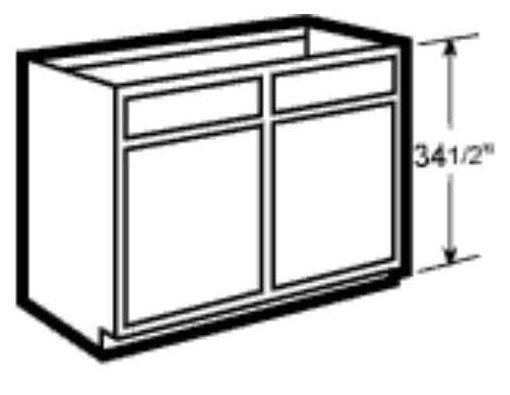

Sink Cabinet 2 Doors
2 False Drawers

SC27 SC39
SC30 SC42
SC33 SC45
SC36 SC48


Cabinet back is open to allow for wall plumbing installation

Back is optional
Corner Sink 1 Door
1 False Drawer

"A"

36 - 17"
39 - 21 1/4"
42 - 25 1/2"


CSC36
CSC39
CSC42
Specify left (L) or right (R) hinging. Back is optional. K-D Toe Kick.

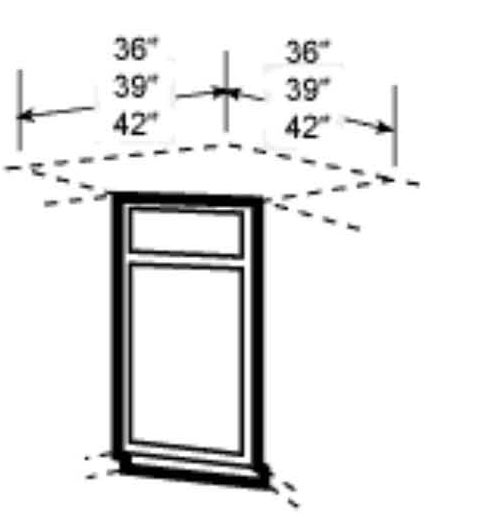

Corner Sink Front 1 Door
1 False Drawer

CSF36
CSF39
CSF42

Cannot be trimmed.
Floor included.


CSF36 requires 36" x 36"
CSF39 requires 39" x 39"
CSF42 requires 42" x 42"
34 1/2" high. Specify left (L) or right (R) hinging. Back is optional. K-D toe Kick.

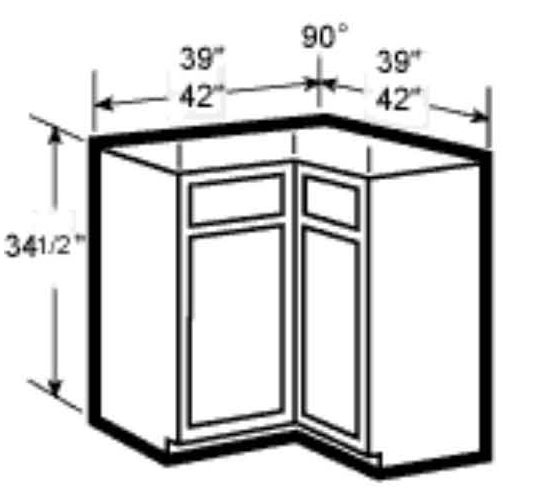

Corner Sink 2 Doors
2 False Drawers

CS90¼/39
CS90¼/42





Measurements "A"
CS 90¼/39 - 15"
CS 90¼/42 - 18"

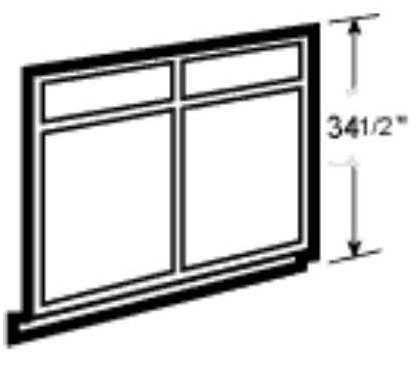

Sink Front Non-Trimmable

*SF15
*SF18
*SF21
*SF24
SF27
SF30
SF33
SF36
SF39
SF42
SF45
SF48
Floor included
*1 Door, 1 False Front

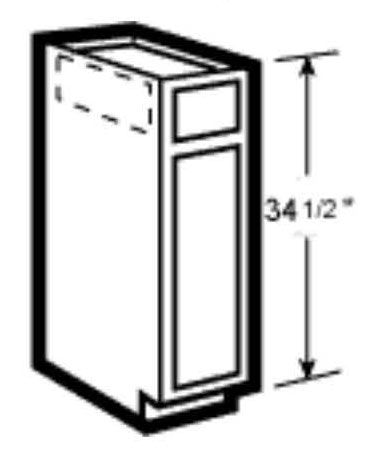

Base Tray Cabinet 1 Door
1 Drawer

TB 9
*TB12
*TB15
*TB18

*1 Divider
**Dividers
Specify left (L)or (R) hinging
No Center Shelf

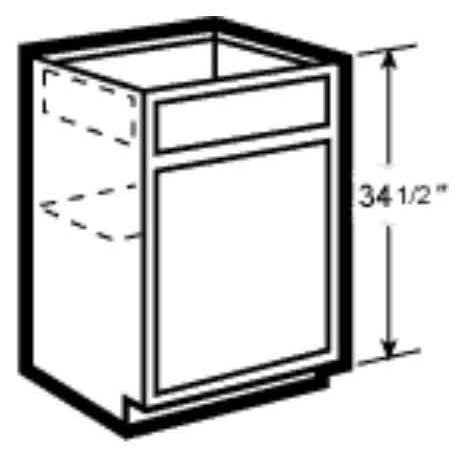

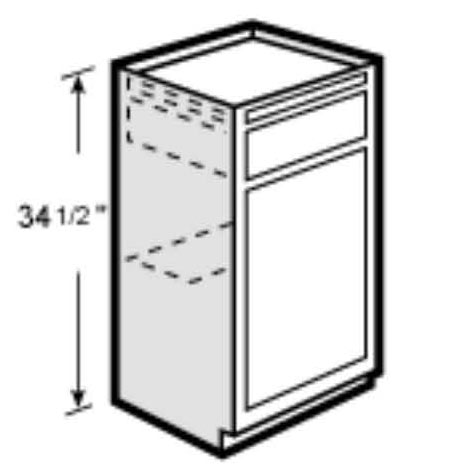

Base Cabinet 1 Door
1 Drawer

B9
B12
B15
B18
B21
B24

Specify left (L) or right (R) hinging
1 Center Shelf Fixed

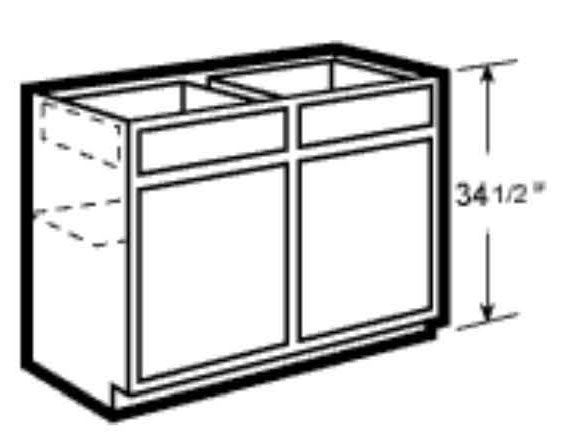

Base Cabinet 2 Doors
2 Drawers

*B27
B30
B33
B36
B39
B42
B45
B48



*One Drawer
1 Center Shelf Fixed

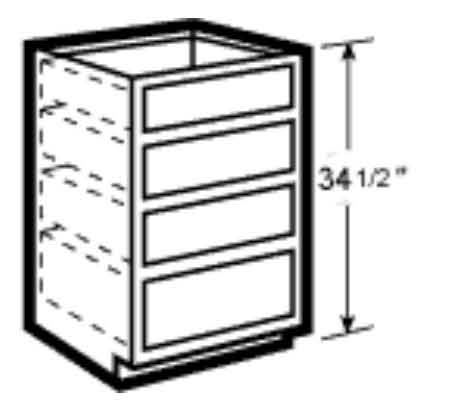

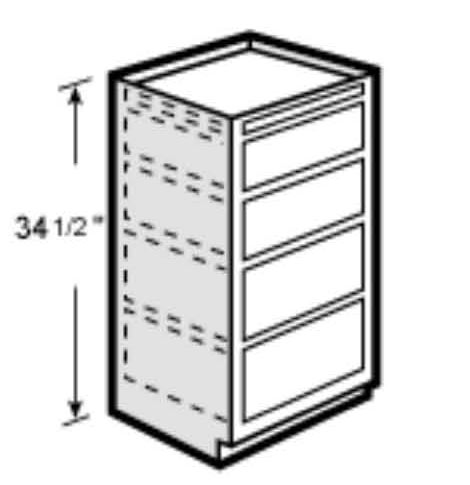

Base Drawer Cabinet
4 Drawers

B12D4
B15D4
B18D4
B21D4
B24D4
*Above sizes also available with 3 drawers specify D3
Base Cabinet
With Bread Board		 1 Door
1 Drawer
1Bread Board

BB15
BB18
BB21
BB24

Specify left (L) or right (R) hinging

Breadboard is recessed into faceframe rail
1 Center Shelf Fixed
Base Drawer
Cabinet with Bread Board		 4 Drawers
1 Bread Board

BB12D4
BB18D4
BB21D4
BB24D4

Specify left (L) or right (R) hinging

Breadboard is recessed into faceframe rail

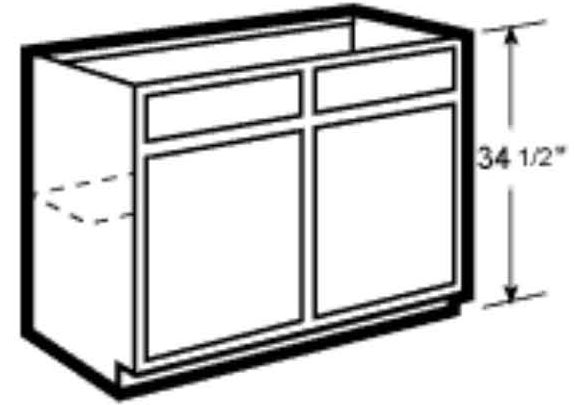

Base Range Cabinet 2 Doors
2 False Drawers

RCB30
RCB33
RCB36
RCB39
RCB42
RCB45
RCB48
1 Center Shelf Fixed

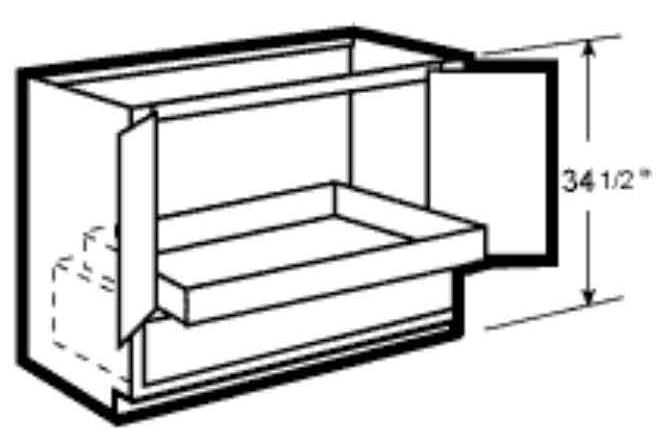

Base Pot & Pan Cabinet 2 Doors
1 Rollout Shelf
1 Drawer (heavey duty)

BPP24
BPP27
BPP30
BPP33
BPP36

• 75lb rated roller drawer guides
• Extra large bottom drawer
• Full width rollout shelf
• Joined doors
Note: Standard base cabinets are 24" deep to front of faceframe, 24 3/4" deep to front of door. Note: Base cabinets come standard with 3 1/2" tall by 2 1/2" deep toe

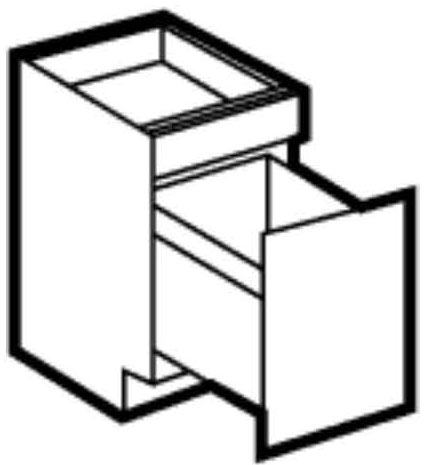

Base With Waste Basket

BWB12
BWB15
BWB18
BWB21
BWB24

*Full Extension Guides
*All Plywood Trash Bin
