Miscellaneous 2 of 3

Matching End Panel- Field Installed	MEP-W *When ordering arched matching end panels, specify panel right or panel left. Wall Example: W1231R-MEP-L Note: Each matching end panel increases cabinet width by 1/2"	51/4" 51/4"

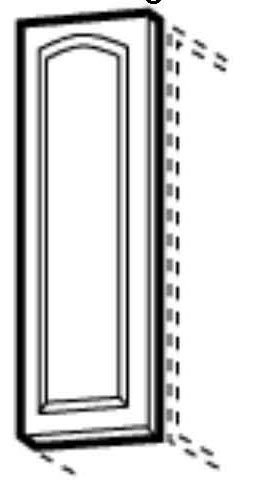

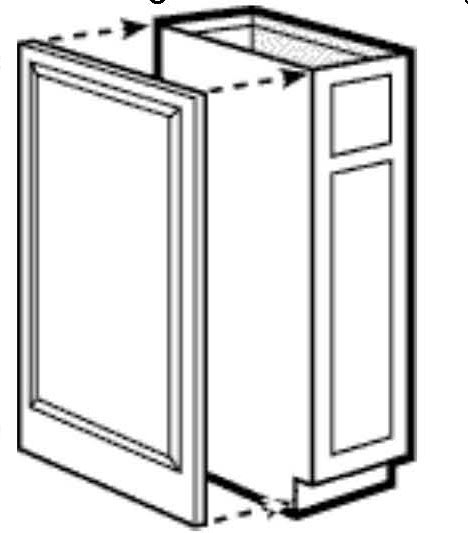

Matching End Panel Wall (Reversible)*			Matching End Panel Base (Reversible)*
1 Center Shelf Fixed - 3/4" plywood			Toe notch to be job cut.

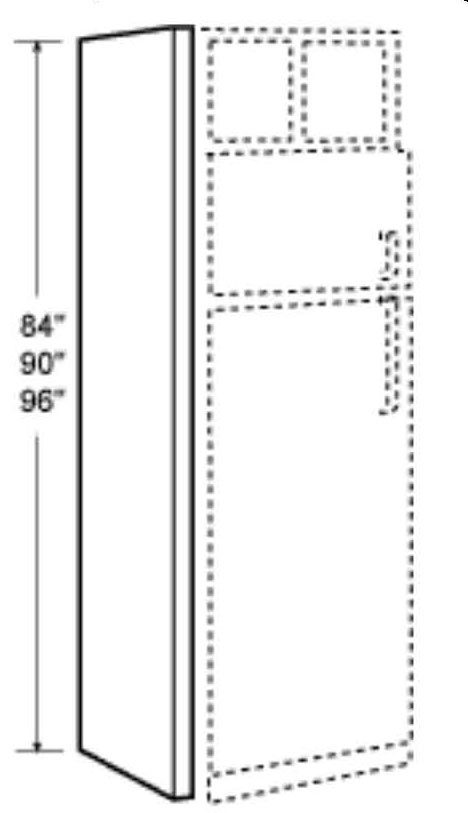

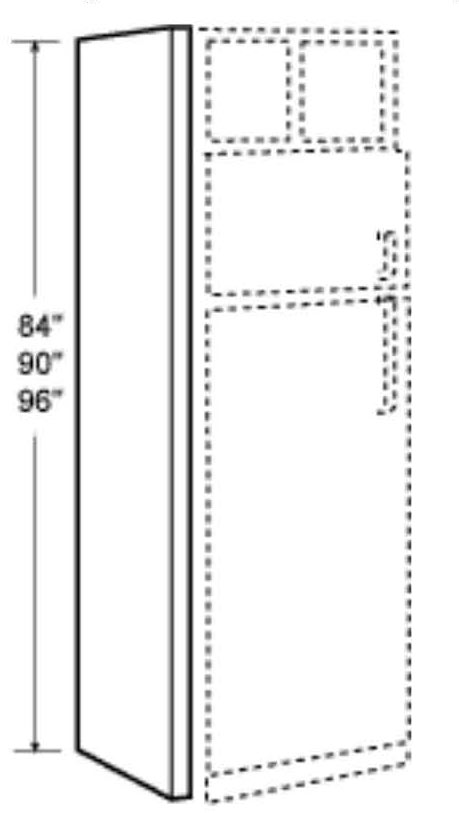

Refrigerator End Panel 84", 90" and 96" High	Matches Base Cabinet Depth REPB84 REPB90 REPB96

Refrigerator End Panel 84", 90" and 96" High	Matches Wall Cabinet Depth REPW84 REPW90 REPW96

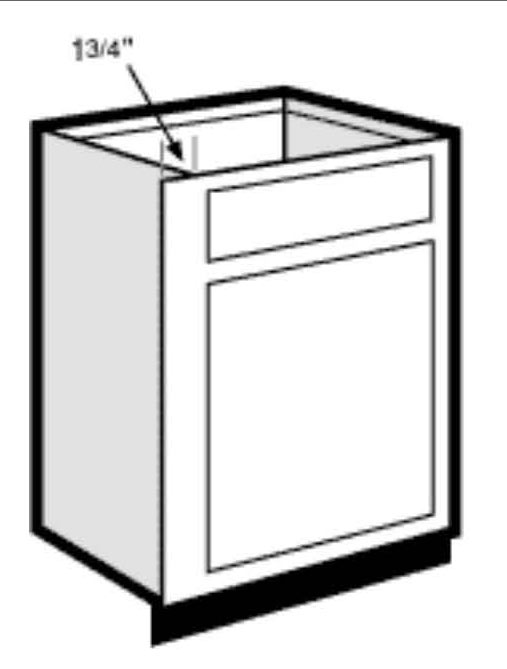

13/4" Extended Stile
Add ES to suffix of cabinet nomenclature. Indicate left (L) or right (R). ES-L shown. Example: B24R-ES-L Extended stile eliminates the need for filler. Available on wall, base and tall cabinets. Note: Not available on corner wall cabinets or angle cabinets.

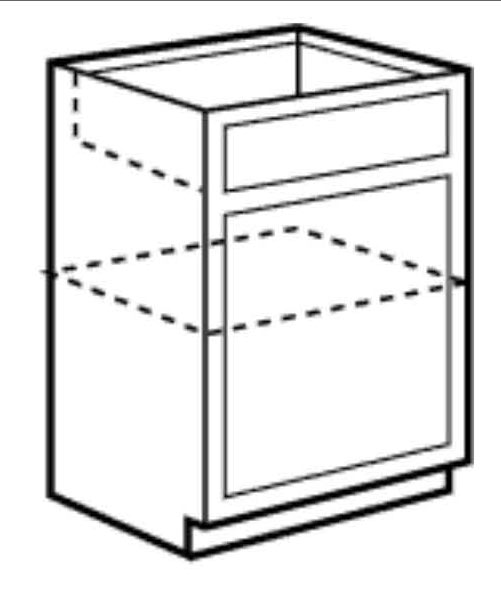

Full Shelf
Add FS to cabinet nomenclature. Example: B24R Pan L FS Standard half shelf replaced with full shelf

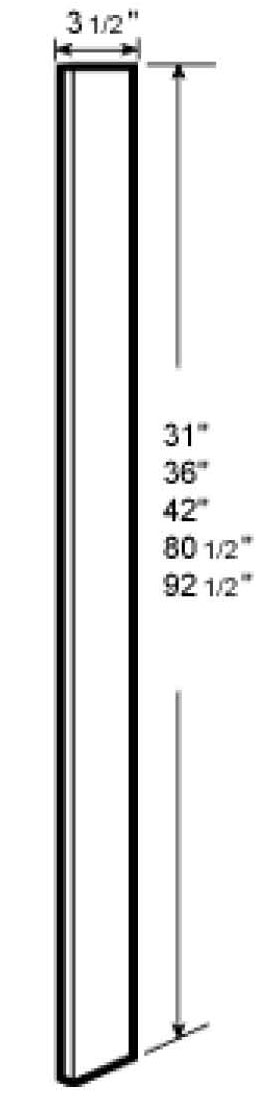

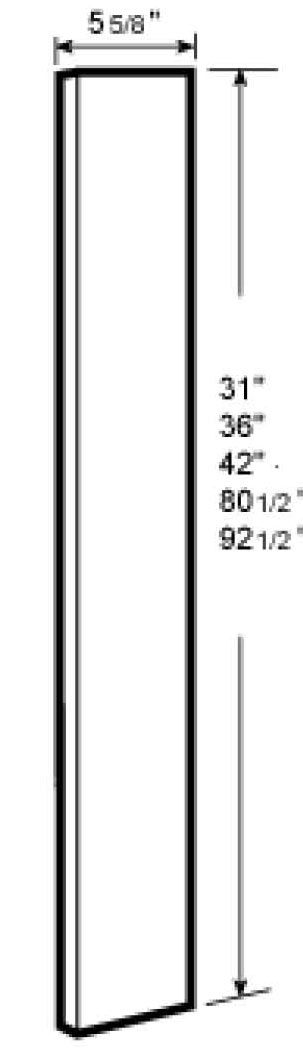

3" Solid Oak or Maple Filler
	WS31-3 WS36-3 WS42-3 WS80-3 WS92-3
3/4" Thick

6" Solid Oak or Maple Filler
	WS31-6 WS36-6 WS42-6 WS80-6 WS92-6
3/4" Thick

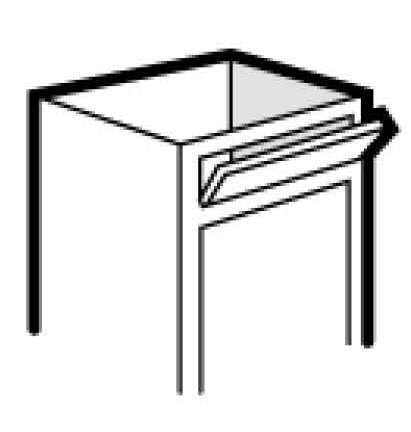

Tilt Front Tray Installed
High-impact, easy-to-clean polystyrene tray installed behind false drawer of sink front. Add TFT to cabinet nomenclature.

Toe Base Corner Filler

TBCF

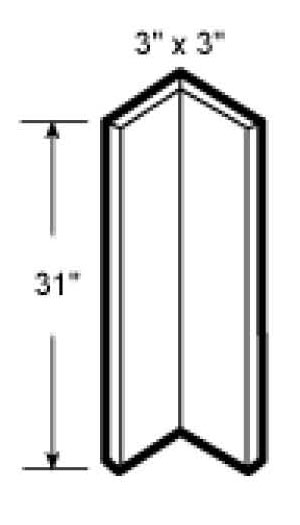

Base Corner Filler
2 TBCF BCF 3"x3"

Prefinished Moldings

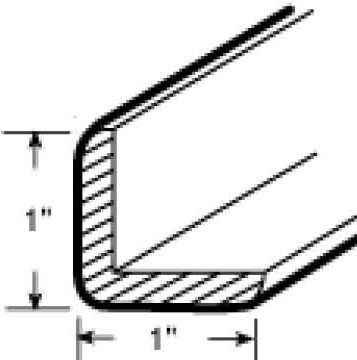

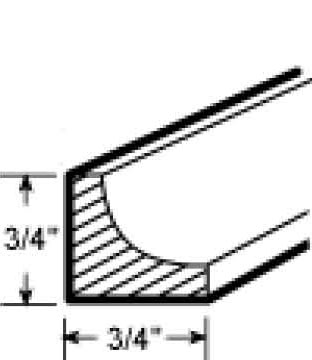

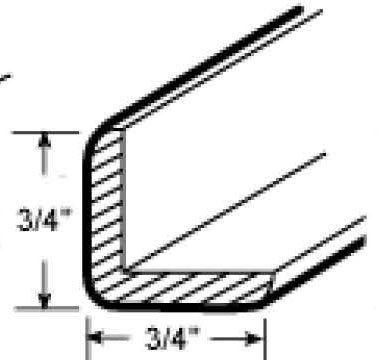

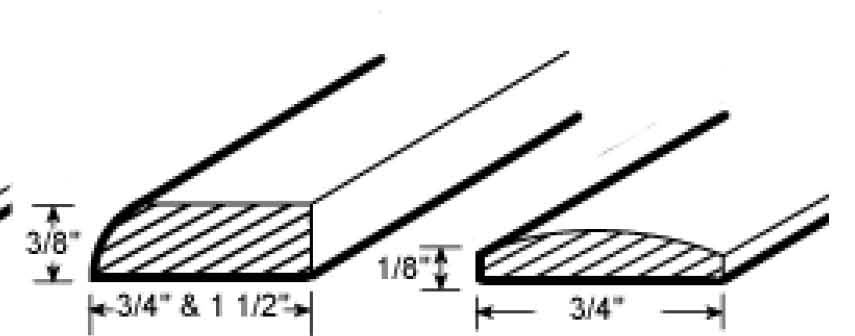

Cove	Outside	Corners	Scribe	Battin

COV	OSCM96-SMALL	OSCM96-LARGE	SCRB96-3/4" SCRB96-LARGE	BATN06

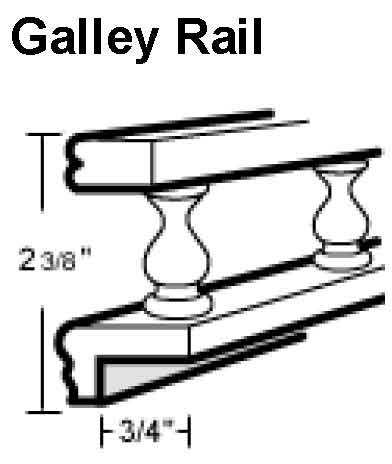

Galley Rail	Solid Oak

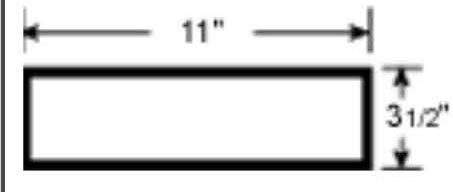

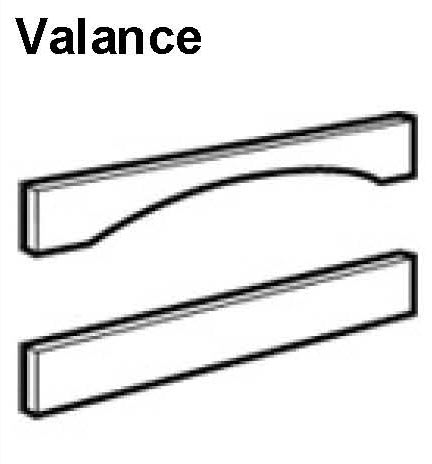

Valance	Arch VA30 VA33 VA36 VA39 VA42 VA48	Straight VS30 VS33 VS36 VS39 VS42 VS48

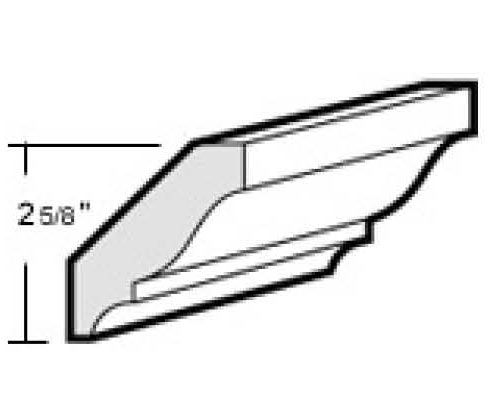

Crown	Solid Oack or Maple
